Generic fixed-length identifier class template. More...

#include <DoIPIdentifiers.h>

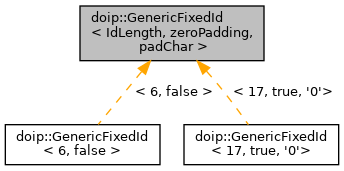

Inheritance diagram for doip::GenericFixedId< IdLength, zeroPadding, padChar >:

Collaboration diagram for doip::GenericFixedId< IdLength, zeroPadding, padChar >:

Public Types
using	value_type = uint8_t

using	size_type = size_t

using	difference_type = std::ptrdiff_t

using	reference = uint8_t &

using	const_reference = const uint8_t &

using	iterator = typename std::array< uint8_t, IdLength >::iterator

using	const_iterator = typename std::array< uint8_t, IdLength >::const_iterator

Public Member Functions
	GenericFixedId ()
	Default constructor - creates an identifier filled with zeros. More...

	GenericFixedId (const std::string &id_string)
	Construct from string. More...

	GenericFixedId (const char *id_cstr)
	Construct from C-style string. More...

	GenericFixedId (const uint8_t *data, size_t length)
	Construct from byte sequence. More...

	GenericFixedId (const ByteArray &byte_array)
	Construct from ByteArray. More...

template<typename integral , typename = std::enable_if_t<std::is_integral_v<integral>>>
	GenericFixedId (integral id_value)
	Construct a new Generic Fixed Id object. More...

	GenericFixedId (const GenericFixedId &other)=default
	Copy constructor. More...

GenericFixedId &	operator= (const GenericFixedId &other)=default
	Copy assignment operator. More...

	GenericFixedId (GenericFixedId &&other) noexcept=default
	Move constructor. More...

GenericFixedId &	operator= (GenericFixedId &&other) noexcept=default
	Move assignment operator. More...

	~GenericFixedId ()=default
	Destructor. More...

std::string	toString () const
	Get identifier as string. More...

std::string	toHexString () const
	Get identifier as hex string, bytes separated by '. More...

ByteArrayRef	asByteArray () const
	Get identifier as ByteArray with exactly IdLength bytes. More...

const std::array< uint8_t, ID_LENGTH > &	getArray () const
	Get direct access to the underlying array. More...

const uint8_t *	data () const
	Get pointer to raw data. More...

ByteArray &	appendTo (ByteArray &bytes) const
	Appends this identifier to the given byte array. More...

constexpr size_t	size () const
	Get the size (always IdLength) More...

bool	isEmpty () const
	Check if identifier is all zeros or all padding characters. More...

bool	operator== (const GenericFixedId &other) const
	Equality operator. More...

bool	operator!= (const GenericFixedId &other) const
	Inequality operator. More...

const uint8_t &	operator[] (size_t index) const
	Array subscript operator (const) More...

constexpr char	getPadChar ()
	Get the char used to pad shorter identifiers. More...

constexpr uint8_t	getPadByte ()
	Get the byte used to pad shorter identifiers. More...

auto	begin () noexcept
	Iterator support - begin. More...

auto	begin () const noexcept
	Iterator support - begin (const) More...

auto	cbegin () const noexcept
	Iterator support - cbegin. More...

auto	end () noexcept
	Iterator support - end. More...

auto	end () const noexcept
	Iterator support - end (const) More...

auto	cend () const noexcept
	Iterator support - cend. More...

Static Public Attributes
static constexpr size_t	ID_LENGTH = IdLength
	Length of the identifier in bytes. More...

static const GenericFixedId	Zero {}
	Static instance containing only zeros. More...

Detailed Description

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>
class doip::GenericFixedId< IdLength, zeroPadding, padChar >

Generic fixed-length identifier class template.

Template Parameters

IdLength	The length of the identifier in bytes.
zeroPadding	Whether to use zero-padding (true) or character-padding (false).
padChar	The character to use for padding (default is null byte).

Definition at line 22 of file DoIPIdentifiers.h.

Member Typedef Documentation

◆ const_iterator

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

using doip::GenericFixedId< IdLength, zeroPadding, padChar >::const_iterator = typename std::array<uint8_t, IdLength>::const_iterator

Definition at line 36 of file DoIPIdentifiers.h.

◆ const_reference

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

using doip::GenericFixedId< IdLength, zeroPadding, padChar >::const_reference = const uint8_t&

Definition at line 34 of file DoIPIdentifiers.h.

◆ difference_type

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

using doip::GenericFixedId< IdLength, zeroPadding, padChar >::difference_type = std::ptrdiff_t

Definition at line 32 of file DoIPIdentifiers.h.

◆ iterator

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

using doip::GenericFixedId< IdLength, zeroPadding, padChar >::iterator = typename std::array<uint8_t, IdLength>::iterator

Definition at line 35 of file DoIPIdentifiers.h.

◆ reference

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

using doip::GenericFixedId< IdLength, zeroPadding, padChar >::reference = uint8_t&

Definition at line 33 of file DoIPIdentifiers.h.

◆ size_type

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

using doip::GenericFixedId< IdLength, zeroPadding, padChar >::size_type = size_t

Definition at line 31 of file DoIPIdentifiers.h.

◆ value_type

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

using doip::GenericFixedId< IdLength, zeroPadding, padChar >::value_type = uint8_t

Definition at line 30 of file DoIPIdentifiers.h.

Constructor & Destructor Documentation

◆ GenericFixedId() [1/8]

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

doip::GenericFixedId< IdLength, zeroPadding, padChar >::GenericFixedId ( )

inline

Default constructor - creates an identifier filled with zeros.

Definition at line 41 of file DoIPIdentifiers.h.

◆ GenericFixedId() [2/8]

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

doip::GenericFixedId< IdLength, zeroPadding, padChar >::GenericFixedId ( const std::string & id_string )

inlineexplicit

Construct from string.

Parameters

id_string The identifier as string. If shorter than IdLength, padded with zeros. If longer, truncated.

Definition at line 48 of file DoIPIdentifiers.h.

References doip::GenericFixedId< IdLength, zeroPadding, padChar >::ID_LENGTH.

◆ GenericFixedId() [3/8]

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

doip::GenericFixedId< IdLength, zeroPadding, padChar >::GenericFixedId ( const char * id_cstr )

inlineexplicit

Construct from C-style string.

Parameters

id_cstr The identifier as C-string. If shorter than IdLength, padded with zeros. If longer, truncated.

Definition at line 59 of file DoIPIdentifiers.h.

References doip::GenericFixedId< IdLength, zeroPadding, padChar >::ID_LENGTH.

◆ GenericFixedId() [4/8]

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

doip::GenericFixedId< IdLength, zeroPadding, padChar >::GenericFixedId	(	const uint8_t *	data,
		size_t	length
	)

inline

Construct from byte sequence.

Parameters

data	Pointer to byte data
length	Length of the byte data. If shorter than IdLength, padded with zeros. If longer, truncated.

Definition at line 75 of file DoIPIdentifiers.h.

References doip::GenericFixedId< IdLength, zeroPadding, padChar >::data(), and doip::GenericFixedId< IdLength, zeroPadding, padChar >::ID_LENGTH.

◆ GenericFixedId() [5/8]

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

doip::GenericFixedId< IdLength, zeroPadding, padChar >::GenericFixedId ( const ByteArray & byte_array )

inlineexplicit

Construct from ByteArray.

Parameters

byte_array The identifier as ByteArray. If shorter than IdLength, padded with zeros. If longer, truncated.

Definition at line 90 of file DoIPIdentifiers.h.

References doip::GenericFixedId< IdLength, zeroPadding, padChar >::ID_LENGTH.

◆ GenericFixedId() [6/8]

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

template<typename integral , typename = std::enable_if_t<std::is_integral_v<integral>>>

doip::GenericFixedId< IdLength, zeroPadding, padChar >::GenericFixedId ( integral id_value )

inlineexplicit

Construct a new Generic Fixed Id object.

Template Parameters

integral the integral type

Parameters

id_value the identifier value as integral type

Definition at line 104 of file DoIPIdentifiers.h.

References doip::GenericFixedId< IdLength, zeroPadding, padChar >::ID_LENGTH.

◆ GenericFixedId() [7/8]

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

doip::GenericFixedId< IdLength, zeroPadding, padChar >::GenericFixedId ( const GenericFixedId< IdLength, zeroPadding, padChar > & other )

default

Copy constructor.

◆ GenericFixedId() [8/8]

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

doip::GenericFixedId< IdLength, zeroPadding, padChar >::GenericFixedId ( GenericFixedId< IdLength, zeroPadding, padChar > && other )

defaultnoexcept

Move constructor.

◆ ~GenericFixedId()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

doip::GenericFixedId< IdLength, zeroPadding, padChar >::~GenericFixedId ( )

default

Destructor.

Member Function Documentation

◆ appendTo()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

ByteArray& doip::GenericFixedId< IdLength, zeroPadding, padChar >::appendTo ( ByteArray & bytes ) const

inline

Appends this identifier to the given byte array.

Parameters

bytes the byte array to append to

Returns: ByteArray& the modified byte array

Definition at line 207 of file DoIPIdentifiers.h.

◆ asByteArray()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

ByteArrayRef doip::GenericFixedId< IdLength, zeroPadding, padChar >::asByteArray ( ) const

inline

Get identifier as ByteArray with exactly IdLength bytes.

Returns: ByteArray The identifier as byte array (always IdLength bytes)

Definition at line 179 of file DoIPIdentifiers.h.

References doip::GenericFixedId< IdLength, zeroPadding, padChar >::ID_LENGTH.

◆ begin() [1/2]

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

auto doip::GenericFixedId< IdLength, zeroPadding, padChar >::begin ( ) const

inlinenoexcept

Iterator support - begin (const)

Returns: auto Const iterator to the beginning of the identifier data

Definition at line 296 of file DoIPIdentifiers.h.

◆ begin() [2/2]

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

auto doip::GenericFixedId< IdLength, zeroPadding, padChar >::begin ( )

inlinenoexcept

Iterator support - begin.

Returns: auto Iterator to the beginning of the identifier data

Definition at line 289 of file DoIPIdentifiers.h.

Referenced by doip::message::makeVehicleIdentificationResponse().

◆ cbegin()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

auto doip::GenericFixedId< IdLength, zeroPadding, padChar >::cbegin ( ) const

inlinenoexcept

Iterator support - cbegin.

Returns: auto Const iterator to the beginning of the identifier data

Definition at line 303 of file DoIPIdentifiers.h.

◆ cend()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

auto doip::GenericFixedId< IdLength, zeroPadding, padChar >::cend ( ) const

inlinenoexcept

Iterator support - cend.

Returns: auto Const iterator to the end of the identifier data

Definition at line 324 of file DoIPIdentifiers.h.

◆ data()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

const uint8_t* doip::GenericFixedId< IdLength, zeroPadding, padChar >::data ( ) const

inline

Get pointer to raw data.

Returns: const uint8_t* Pointer to the identifier data

Definition at line 197 of file DoIPIdentifiers.h.

Referenced by doip::GenericFixedId< IdLength, zeroPadding, padChar >::GenericFixedId().

◆ end() [1/2]

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

auto doip::GenericFixedId< IdLength, zeroPadding, padChar >::end ( ) const

inlinenoexcept

Iterator support - end (const)

Returns: auto Const iterator to the end of the identifier data

Definition at line 317 of file DoIPIdentifiers.h.

◆ end() [2/2]

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

auto doip::GenericFixedId< IdLength, zeroPadding, padChar >::end ( )

inlinenoexcept

Iterator support - end.

Returns: auto Iterator to the end of the identifier data

Definition at line 310 of file DoIPIdentifiers.h.

Referenced by doip::message::makeVehicleIdentificationResponse().

◆ getArray()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

const std::array<uint8_t, ID_LENGTH>& doip::GenericFixedId< IdLength, zeroPadding, padChar >::getArray ( ) const

inline

Get direct access to the underlying array.

Returns: const std::array<uint8_t, ID_LENGTH>& Reference to the internal array

Definition at line 188 of file DoIPIdentifiers.h.

◆ getPadByte()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

constexpr uint8_t doip::GenericFixedId< IdLength, zeroPadding, padChar >::getPadByte ( )

inlineconstexpr

Get the byte used to pad shorter identifiers.

Returns: uint8_t constexpr the padding byte

Definition at line 280 of file DoIPIdentifiers.h.

◆ getPadChar()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

constexpr char doip::GenericFixedId< IdLength, zeroPadding, padChar >::getPadChar ( )

inlineconstexpr

Get the char used to pad shorter identifiers.

Returns: char constexpr the padding character

Definition at line 271 of file DoIPIdentifiers.h.

◆ isEmpty()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

bool doip::GenericFixedId< IdLength, zeroPadding, padChar >::isEmpty ( ) const

inline

Check if identifier is all zeros or all padding characters.

Returns: bool True if all bytes are zero or all bytes are the padding character

Definition at line 226 of file DoIPIdentifiers.h.

◆ operator!=()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

bool doip::GenericFixedId< IdLength, zeroPadding, padChar >::operator!= ( const GenericFixedId< IdLength, zeroPadding, padChar > & other ) const

inline

Inequality operator.

Parameters

other The other identifier to compare with

Returns: bool True if identifiers are different

Definition at line 252 of file DoIPIdentifiers.h.

◆ operator=() [1/2]

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

GenericFixedId& doip::GenericFixedId< IdLength, zeroPadding, padChar >::operator= ( const GenericFixedId< IdLength, zeroPadding, padChar > & other )

default

Copy assignment operator.

◆ operator=() [2/2]

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

GenericFixedId& doip::GenericFixedId< IdLength, zeroPadding, padChar >::operator= ( GenericFixedId< IdLength, zeroPadding, padChar > && other )

defaultnoexcept

Move assignment operator.

◆ operator==()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

bool doip::GenericFixedId< IdLength, zeroPadding, padChar >::operator== ( const GenericFixedId< IdLength, zeroPadding, padChar > & other ) const

inline

Equality operator.

Parameters

other The other identifier to compare with

Returns: bool True if both identifiers are identical

Definition at line 242 of file DoIPIdentifiers.h.

◆ operator[]()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

const uint8_t& doip::GenericFixedId< IdLength, zeroPadding, padChar >::operator[] ( size_t index ) const

inline

Array subscript operator (const)

Parameters

index Index (0 to IdLength-1)

Returns: const uint8_t& Reference to the byte at the given index

Definition at line 262 of file DoIPIdentifiers.h.

◆ size()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

constexpr size_t doip::GenericFixedId< IdLength, zeroPadding, padChar >::size ( ) const

inlineconstexpr

Get the size (always IdLength)

Returns: constexpr size_t Always returns ID_LENGTH (IdLength)

Definition at line 217 of file DoIPIdentifiers.h.

Referenced by doip::message::makeVehicleIdentificationResponse().

◆ toHexString()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

std::string doip::GenericFixedId< IdLength, zeroPadding, padChar >::toHexString ( ) const

inline

Get identifier as hex string, bytes separated by '.

'

Returns: std::string Hex representation (e.g. "01.02.0A")

Definition at line 162 of file DoIPIdentifiers.h.

References doip::GenericFixedId< IdLength, zeroPadding, padChar >::ID_LENGTH.

Referenced by doip::operator<<().

◆ toString()

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

std::string doip::GenericFixedId< IdLength, zeroPadding, padChar >::toString ( ) const

inline

Get identifier as string.

Returns: std::string The identifier as string (may contain null bytes if identifier was shorter than IdLength)

Definition at line 145 of file DoIPIdentifiers.h.

References doip::GenericFixedId< IdLength, zeroPadding, padChar >::ID_LENGTH.

Referenced by doip::operator<<().

Member Data Documentation

◆ ID_LENGTH

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>

constexpr size_t doip::GenericFixedId< IdLength, zeroPadding, padChar >::ID_LENGTH = IdLength

staticconstexpr

Length of the identifier in bytes.

Definition at line 27 of file DoIPIdentifiers.h.

Referenced by doip::GenericFixedId< IdLength, zeroPadding, padChar >::asByteArray(), doip::GenericFixedId< IdLength, zeroPadding, padChar >::GenericFixedId(), doip::DoIPServer::setDefaultEid(), doip::GenericFixedId< IdLength, zeroPadding, padChar >::toHexString(), and doip::GenericFixedId< IdLength, zeroPadding, padChar >::toString().

◆ Zero

template<size_t IdLength, bool zeroPadding, char padChar>

const GenericFixedId< IdLength, zeroPadding, padChar > doip::GenericFixedId< IdLength, zeroPadding, padChar >::Zero {}

inlinestatic

Static instance containing only zeros.

Definition at line 329 of file DoIPIdentifiers.h.

The documentation for this class was generated from the following file:

inc/DoIPIdentifiers.h

Public Types

Public Member Functions

Static Public Attributes

Detailed Description

template<size_t IdLength, bool zeroPadding = false, char padChar = 0> class doip::GenericFixedId< IdLength, zeroPadding, padChar >

Member Typedef Documentation

◆ const_iterator

◆ const_reference

◆ difference_type

◆ iterator

◆ reference

◆ size_type

◆ value_type

Constructor & Destructor Documentation

◆ GenericFixedId() [1/8]

◆ GenericFixedId() [2/8]

◆ GenericFixedId() [3/8]

◆ GenericFixedId() [4/8]

◆ GenericFixedId() [5/8]

◆ GenericFixedId() [6/8]

◆ GenericFixedId() [7/8]

◆ GenericFixedId() [8/8]

◆ ~GenericFixedId()

Member Function Documentation

◆ appendTo()

◆ asByteArray()

◆ begin() [1/2]

◆ begin() [2/2]

◆ cbegin()

◆ cend()

◆ data()

◆ end() [1/2]

◆ end() [2/2]

◆ getArray()

◆ getPadByte()

◆ getPadChar()

◆ isEmpty()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ operator[]()

◆ size()

◆ toHexString()

◆ toString()

Member Data Documentation

◆ ID_LENGTH

◆ Zero

template<size_t IdLength, bool zeroPadding = false, char padChar = 0>
class doip::GenericFixedId< IdLength, zeroPadding, padChar >
