doip::DoIPConnection Class Reference

#include <DoIPConnection.h>

Inheritance diagram for doip::DoIPConnection:

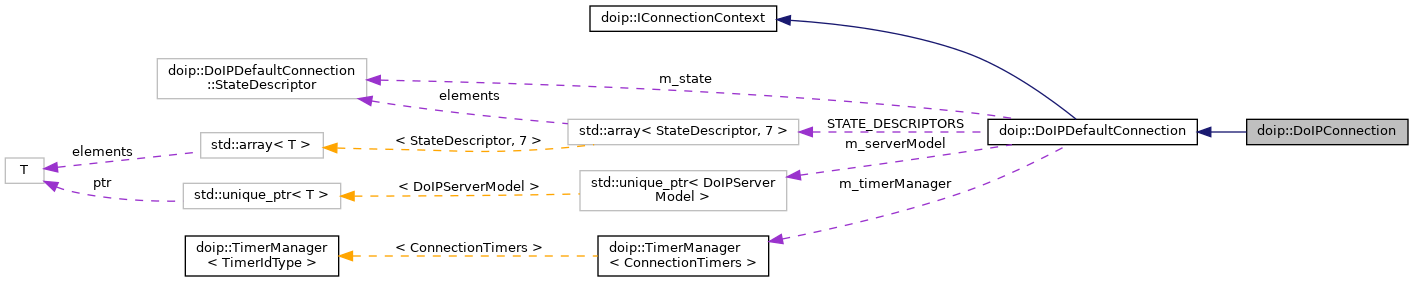

Collaboration diagram for doip::DoIPConnection:

Public Member Functions
	DoIPConnection (int tcpSocket, UniqueServerModelPtr model)
int	receiveTcpMessage ()
size_t	receiveFixedNumberOfBytesFromTCP (uint8_t *receivedData, size_t payloadLength)
	Receive exactly payloadLength bytes from the TCP stream and put them into receivedData. More...
void	sendDiagnosticPayload (const DoIPAddress &sourceAddress, const ByteArray &payload)
bool	isSocketActive ()
void	triggerDisconnection ()
void	sendDiagnosticAck (const DoIPAddress &sourceAddress)
void	sendDiagnosticNegativeAck (const DoIPAddress &sourceAddress, DoIPNegativeDiagnosticAck ackCode)
ssize_t	sendProtocolMessage (const DoIPMessage &msg) override
	Send a DoIP protocol message to the client. More...
void	closeConnection (DoIPCloseReason reason) override
	Close the TCP connection. More...
DoIPAddress	getServerAddress () const override
	Get the server's logical address. More...
DoIPAddress	getClientAddress () const override
	Get the currently client (active source) address. More...
void	setClientAddress (const DoIPAddress &address) override
	Set the client (active source) address after routing activation. More...
DoIPDiagnosticAck	notifyDiagnosticMessage (const DoIPMessage &msg) override
	Handle an incoming diagnostic message (application callback) More...
void	notifyConnectionClosed (DoIPCloseReason reason) override
	Notify application that connection is closing. More...
void	notifyDiagnosticAckSent (DoIPDiagnosticAck ack) override
	Notify application that diagnostic ACK/NACK was sent. More...
bool	hasDownstreamHandler () const override
	Check if downstream forwarding is available. More...
Public Member Functions inherited from doip::DoIPDefaultConnection
	DoIPDefaultConnection (UniqueServerModelPtr model)
	Constructs a DoIPDefaultConnection. More...
ssize_t	sendProtocolMessage (const DoIPMessage &msg) override
	Sends a DoIP protocol message to the client. More...
void	closeConnection (DoIPCloseReason reason) override
	Closes the connection. More...
bool	isOpen () const override
	Checks if the connection is open. More...
DoIPCloseReason	getCloseReason () const override
	Gets the reason for connection closure. More...
bool	isRoutingActivated () const
	Checks if routing is currently activated. More...
uint8_t	getAliveCheckRetryCount () const
	Gets the alive check retry count. More...
std::chrono::milliseconds	getInitialInactivityTimeout () const
	Gets the initial inactivity timeout duration. More...
std::chrono::milliseconds	getGeneralInactivityTimeout () const
	Gets the general inactivity timeout duration. More...
std::chrono::milliseconds	getAliveCheckTimeout () const
	Gets the alive check timeout duration. More...
std::chrono::milliseconds	getDownstreamResponseTimeout () const
	Gets the downstream response timeout duration. More...
void	setAliveCheckRetryCount (uint8_t count)
	Sets the alive check retry count. More...
void	setInitialInactivityTimeout (std::chrono::milliseconds timeout)
	Sets the initial inactivity timeout duration. More...
void	setGeneralInactivityTimeout (std::chrono::milliseconds timeout)
	Sets the general inactivity timeout duration. More...
void	setAliveCheckTimeout (std::chrono::milliseconds timeout)
	Sets the alive check timeout duration. More...
void	setDownstreamResponseTimeout (std::chrono::milliseconds timeout)
	Sets the downstream response timeout duration. More...
DoIPAddress	getServerAddress () const override
	Gets the server's logical address. More...
DoIPAddress	getClientAddress () const override
	Gets the client's address. More...
DoIPDiagnosticAck	notifyDiagnosticMessage (const DoIPMessage &msg) override
	Handles an incoming diagnostic message. More...
void	notifyConnectionClosed (DoIPCloseReason reason) override
	Notifies application that connection is closing. More...
void	notifyDiagnosticAckSent (DoIPDiagnosticAck ack) override
	Notifies application that diagnostic ACK/NACK was sent. More...
bool	hasDownstreamHandler () const override
	Checks if a downstream handler is present. More...
DoIPDownstreamResult	notifyDownstreamRequest (const DoIPMessage &msg) override
	Notifies application of a downstream request. More...
void	receiveDownstreamResponse (const ByteArray &response, DoIPDownstreamResult result) override
	Receives a downstream response. More...
DoIPServerState	getState () const
	Gets the current state of the connection. More...
UniqueServerModelPtr &	getServerModel ()
	Gets the server model. More...
void	handleMessage2 (const DoIPMessage &message)
	Handles a message (internal helper) More...
Public Member Functions inherited from doip::IConnectionContext
virtual	~IConnectionContext ()=default

Additional Inherited Members
Protected Member Functions inherited from doip::DoIPDefaultConnection
void	transitionTo (DoIPServerState newState)
std::chrono::milliseconds	getTimerDuration (StateDescriptor const *stateDesc)
void	startStateTimer (StateDescriptor const *stateDesc)
void	restartStateTimer ()
void	handleSocketInitialized (DoIPServerEvent event, OptDoIPMessage msg)
void	handleWaitRoutingActivation (DoIPServerEvent event, OptDoIPMessage msg)
void	handleRoutingActivated (DoIPServerEvent event, OptDoIPMessage msg)
void	handleWaitAliveCheckResponse (DoIPServerEvent event, OptDoIPMessage msg)
void	handleWaitDownstreamResponse (DoIPServerEvent event, OptDoIPMessage msg)
void	handleFinalize (DoIPServerEvent event, OptDoIPMessage msg)
void	handleTimeout (ConnectionTimers timer_id)
	Default timeout handler. More...
ssize_t	sendRoutingActivationResponse (const DoIPAddress &source_address, DoIPRoutingActivationResult response_code)
ssize_t	sendAliveCheckRequest ()
ssize_t	sendDiagnosticMessageResponse (const DoIPAddress &sourceAddress, DoIPDiagnosticAck ack)
ssize_t	sendDownstreamResponse (const DoIPAddress &sourceAddress, const ByteArray &payload)
Protected Attributes inherited from doip::DoIPDefaultConnection
UniqueServerModelPtr	m_serverModel
std::array< StateDescriptor, 7 >	STATE_DESCRIPTORS
DoIPAddress	m_routedClientAddress
bool	m_isOpen
DoIPCloseReason	m_closeReason = DoIPCloseReason::None
const StateDescriptor *	m_state = nullptr
TimerManager< ConnectionTimers >	m_timerManager
uint8_t	m_aliveCheckRetry {0}
uint8_t	m_aliveCheckRetryCount {DOIP_ALIVE_CHECK_RETRIES}
std::chrono::milliseconds	m_initialInactivityTimeout {times::server::InitialInactivityTimeout}
std::chrono::milliseconds	m_generalInactivityTimeout {times::server::GeneralInactivityTimeout}
std::chrono::milliseconds	m_aliveCheckTimeout {times::server::AliveCheckResponseTimeout}
std::chrono::milliseconds	m_downstreamResponseTimeout {10s}

Detailed Description

Definition at line 25 of file DoIPConnection.h.

Constructor & Destructor Documentation

DoIPConnection()

doip::DoIPConnection::DoIPConnection	(	int	tcpSocket,
		UniqueServerModelPtr	model
	)

Definition at line 11 of file DoIPConnection.cpp.

Member Function Documentation

closeConnection()

void doip::DoIPConnection::closeConnection ( DoIPCloseReason  reason )

overridevirtual

Close the TCP connection.

Parameters

reason

Why the connection is being closed

Implements doip::IConnectionContext.

Definition at line 130 of file DoIPConnection.cpp.

References doip::DoIPDefaultConnection::closeConnection(), LOG_DOIP_DEBUG, LOG_DOIP_INFO, and fmt::streamed().

getClientAddress()

DoIPAddress doip::DoIPConnection::getClientAddress ( ) const

overridevirtual

Get the currently client (active source) address.

Returns

The client (active source) address, or 0 if no routing is active

Implements doip::IConnectionContext.

Definition at line 151 of file DoIPConnection.cpp.

getServerAddress()

DoIPAddress doip::DoIPConnection::getServerAddress ( ) const

overridevirtual

Get the server's logical address.

Returns

The server's DoIP logical address

Implements doip::IConnectionContext.

Definition at line 147 of file DoIPConnection.cpp.

References doip::DoIPDefaultConnection::m_serverModel.

hasDownstreamHandler()

bool doip::DoIPConnection::hasDownstreamHandler ( ) const

overridevirtual

Check if downstream forwarding is available.

Returns

true if the server model has a downstream handler configured

Implements doip::IConnectionContext.

Definition at line 181 of file DoIPConnection.cpp.

References doip::DoIPDefaultConnection::m_serverModel.

isSocketActive()

bool doip::DoIPConnection::isSocketActive ( )

inline

Definition at line 34 of file DoIPConnection.h.

notifyConnectionClosed()

void doip::DoIPConnection::notifyConnectionClosed ( DoIPCloseReason  reason )

overridevirtual

Notify application that connection is closing.

Parameters

reason

Why the connection is closing

Implements doip::IConnectionContext.

Definition at line 168 of file DoIPConnection.cpp.

References doip::DoIPDefaultConnection::m_serverModel.

notifyDiagnosticAckSent()

void doip::DoIPConnection::notifyDiagnosticAckSent ( DoIPDiagnosticAck  ack )

overridevirtual

Notify application that diagnostic ACK/NACK was sent.

Parameters

ack	The ACK/NACK that was sent

Implements doip::IConnectionContext.

Definition at line 175 of file DoIPConnection.cpp.

References doip::DoIPDefaultConnection::m_serverModel.

notifyDiagnosticMessage()

DoIPDiagnosticAck doip::DoIPConnection::notifyDiagnosticMessage ( const DoIPMessage &  msg )

overridevirtual

Handle an incoming diagnostic message (application callback)

Parameters

msg	The diagnostic message received

Returns

std::nullopt for ACK, or NACK code

Implements doip::IConnectionContext.

Definition at line 159 of file DoIPConnection.cpp.

References doip::DoIPDefaultConnection::m_serverModel.

receiveFixedNumberOfBytesFromTCP()

size_t doip::DoIPConnection::receiveFixedNumberOfBytesFromTCP	(	uint8_t *	receivedData,
		size_t	payloadLength
	)

Receive exactly payloadLength bytes from the TCP stream and put them into receivedData.

The method blocks until receivedData bytes are received or the socket is closed.

The parameter receivedData needs to point to a readily allocated array with at least payloadLength items.

Returns

number of bytes received

Definition at line 85 of file DoIPConnection.cpp.

Referenced by receiveTcpMessage().

receiveTcpMessage()

int doip::DoIPConnection::receiveTcpMessage

(

)

Definition at line 29 of file DoIPConnection.cpp.

References doip::DOIP_HEADER_SIZE, doip::DoIPDefaultConnection::handleMessage2(), LOG_DOIP_DEBUG, LOG_DOIP_ERROR, LOG_DOIP_INFO, receiveFixedNumberOfBytesFromTCP(), fmt::streamed(), and doip::DoIPMessage::tryParseHeader().

sendDiagnosticAck()

void doip::DoIPConnection::sendDiagnosticAck

(

const DoIPAddress &

sourceAddress

)

sendDiagnosticNegativeAck()

void doip::DoIPConnection::sendDiagnosticNegativeAck	(	const DoIPAddress &	sourceAddress,
		DoIPNegativeDiagnosticAck	ackCode
	)

sendDiagnosticPayload()

void doip::DoIPConnection::sendDiagnosticPayload	(	const DoIPAddress &	sourceAddress,
		const ByteArray &	payload
	)

sendProtocolMessage()

ssize_t doip::DoIPConnection::sendProtocolMessage ( const DoIPMessage &  msg )

overridevirtual

Send a DoIP protocol message to the client.

Parameters

msg	The DoIP message to send

Implements doip::IConnectionContext.

Definition at line 120 of file DoIPConnection.cpp.

References doip::DoIPMessage::data(), LOG_DOIP_ERROR, LOG_DOIP_INFO, doip::DoIPMessage::size(), and fmt::streamed().

setClientAddress()

void doip::DoIPConnection::setClientAddress ( const DoIPAddress &  address )

overridevirtual

Set the client (active source) address after routing activation.

Parameters

address

The client's source address

Implements doip::IConnectionContext.

Definition at line 155 of file DoIPConnection.cpp.

triggerDisconnection()

void doip::DoIPConnection::triggerDisconnection

(

)

Definition at line 102 of file DoIPConnection.cpp.

References LOG_DOIP_INFO.

---

The documentation for this class was generated from the following files:

• inc/DoIPConnection.h
• src/DoIPConnection.cpp
