UdsServices.h File Reference

#include <type_traits>
#include <utility>
#include <array>
#include <cstdint>

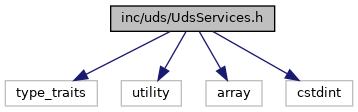

Include dependency graph for UdsServices.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	doip::uds::UdsServiceDescriptor

Namespaces
	doip
	doip::uds

Typedefs
using	doip::uds::uds_length = uint16_t

Enumerations
enum class	doip::uds::UdsService : uint8_t {   doip::uds::DiagnosticSessionControl = 0x10 ,   doip::uds::ECUReset = 0x11 ,   doip::uds::SecurityAccess = 0x27 ,   doip::uds::CommunicationControl = 0x28 ,   doip::uds::TesterPresent = 0x3E ,   doip::uds::AccessTimingParameters = 0x83 ,   doip::uds::SecuredDataTransmission = 0x84 ,   doip::uds::ControlDTCSetting = 0x85 ,   doip::uds::ResponseOnEvent = 0x86 ,   doip::uds::LinkControl = 0x87 ,   doip::uds::ReadDataByIdentifier = 0x22 ,   doip::uds::ReadMemoryByAddress = 0x23 ,   doip::uds::ReadScalingDataByIdentifier = 0x24 ,   doip::uds::ReadDataByPeriodicIdentifier = 0x2A ,   doip::uds::DynamicallyDefineDataIdentifier = 0x2C ,   doip::uds::WriteDataByIdentifier = 0x2E ,   doip::uds::WriteMemoryByAddress = 0x3D ,   doip::uds::ClearDiagnosticInformation = 0x14 ,   doip::uds::ReadDTCInformation = 0x19 }

Functions
const UdsServiceDescriptor *	doip::uds::findServiceDescriptor (UdsService sid)
	Find service descriptor by service ID. More...

Variables
constexpr uds_length	doip::uds::MAX_UDS_MESSAGE_LENGTH = 4095
constexpr std::array< UdsServiceDescriptor, 19 >	doip::uds::UDS_SERVICE_DESCRIPTORS
