DoIPServerModel.h File Reference

#include <functional>
#include "DoIPAddress.h"
#include "DoIPCloseReason.h"
#include "DoIPDownstreamResult.h"
#include "DoIPMessage.h"
#include "DoIPNegativeDiagnosticAck.h"
#include "DoIPServerEvent.h"
#include "DoIPServerState.h"
#include "Logger.h"

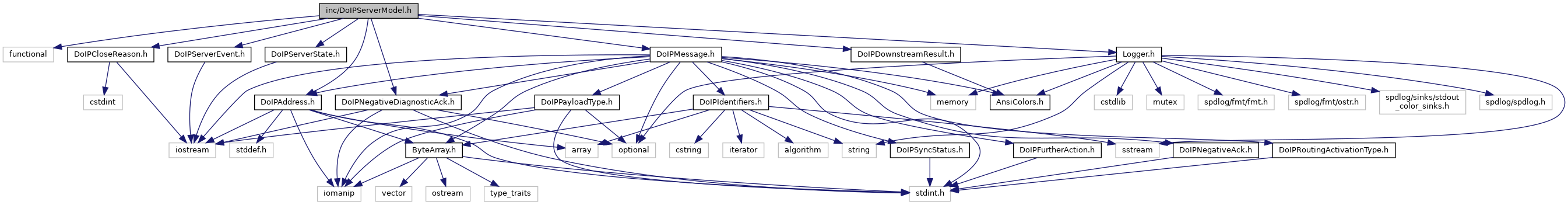

Include dependency graph for DoIPServerModel.h:

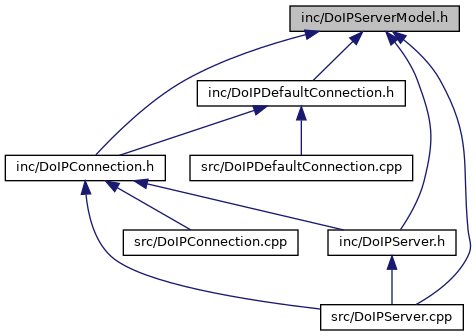

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	doip::DoIPServerModel
	DoIP Server Model - Configuration and callbacks for a DoIP server connection. More...
struct	doip::DefaultDoIPServerModel
	Default DoIP Server Model with no-op callbacks. More...

Namespaces
	doip

Typedefs
using	doip::ServerModelOpenHandler = std::function< void(IConnectionContext &)>
using	doip::ServerModelCloseHandler = std::function< void(IConnectionContext &, DoIPCloseReason)>
using	doip::ServerModelDiagnosticHandler = std::function< DoIPDiagnosticAck(IConnectionContext &, const DoIPMessage &)>
using	doip::ServerModelDiagnosticNotificationHandler = std::function< void(IConnectionContext &, DoIPDiagnosticAck)>
using	doip::ServerModelDownstreamResponseHandler = std::function< void(const ByteArray &response, DoIPDownstreamResult result)>
	Callback for downstream response notification. More...
using	doip::ServerModelDownstreamHandler = std::function< DoIPDownstreamResult(IConnectionContext &ctx, const DoIPMessage &msg, ServerModelDownstreamResponseHandler callback)>
	Callback for downstream (subnet) request handling. More...
using	doip::UniqueServerModelPtr = std::unique_ptr< DoIPServerModel >
