#include <stdint.h>
#include <iostream>
#include <iomanip>
#include <optional>

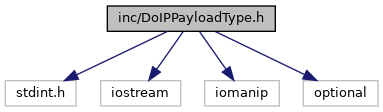

Include dependency graph for DoIPPayloadType.h:

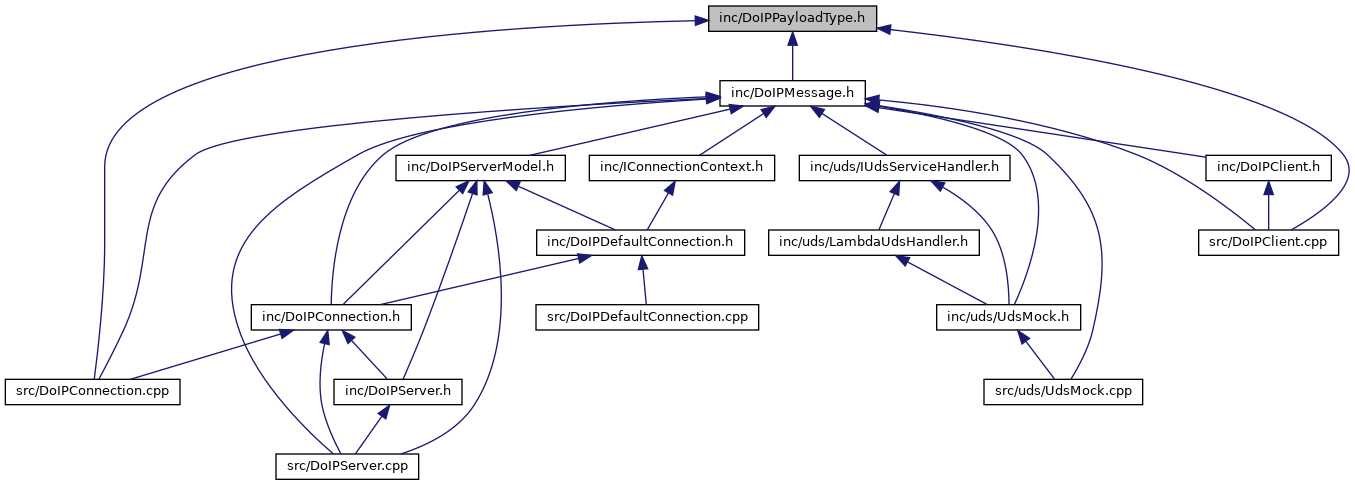

This graph shows which files directly or indirectly include this file:

Enumerations
enum class	doip::DoIPPayloadType : uint16_t { doip::NegativeAck = 0x0000 , doip::VehicleIdentificationRequest = 0x0001 , doip::VehicleIdentificationRequestWithEid = 0x0002 , doip::VehicleIdentificationRequestWithVin = 0x0003 , doip::VehicleIdentificationResponse = 0x0004 , doip::RoutingActivationRequest = 0x0005 , doip::RoutingActivationResponse = 0x0006 , doip::AliveCheckRequest = 0x0007 , doip::AliveCheckResponse = 0x0008 , doip::EntityStatusRequest = 0x4001 , doip::EntityStatusResponse = 0x4002 , doip::DiagnosticPowerModeRequest = 0x4003 , doip::DiagnosticPowerModeResponse = 0x4004 , doip::DiagnosticMessage = 0x8001 , doip::DiagnosticMessageAck = 0x8002 , doip::DiagnosticMessageNegativeAck = 0x8003 , doip::PeriodicDiagnosticMessage = 0x8004 }
	DoIP Payload Type identifiers according to ISO 13400-2. More...

Functions
constexpr bool	doip::isValidPayloadType (uint16_t value) noexcept
	Validates if a uint16_t value represents a valid DoIPPayloadType. More...

constexpr std::optional< DoIPPayloadType >	doip::toPayloadType (uint16_t value) noexcept
	Safely converts uint16_t to DoIPPayloadType with validation. More...

constexpr std::optional< DoIPPayloadType >	doip::toPayloadType (uint8_t hsb, uint8_t lsb) noexcept

std::ostream &	doip::operator<< (std::ostream &os, DoIPPayloadType type)
	Stream operator for DoIPPayloadType enum. More...

Namespaces

Enumerations
