DoIPNegativeDiagnosticAck.h File Reference

#include <stdint.h>
#include <optional>
#include <iostream>
#include <iomanip>

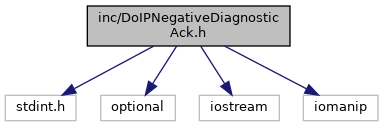

Include dependency graph for DoIPNegativeDiagnosticAck.h:

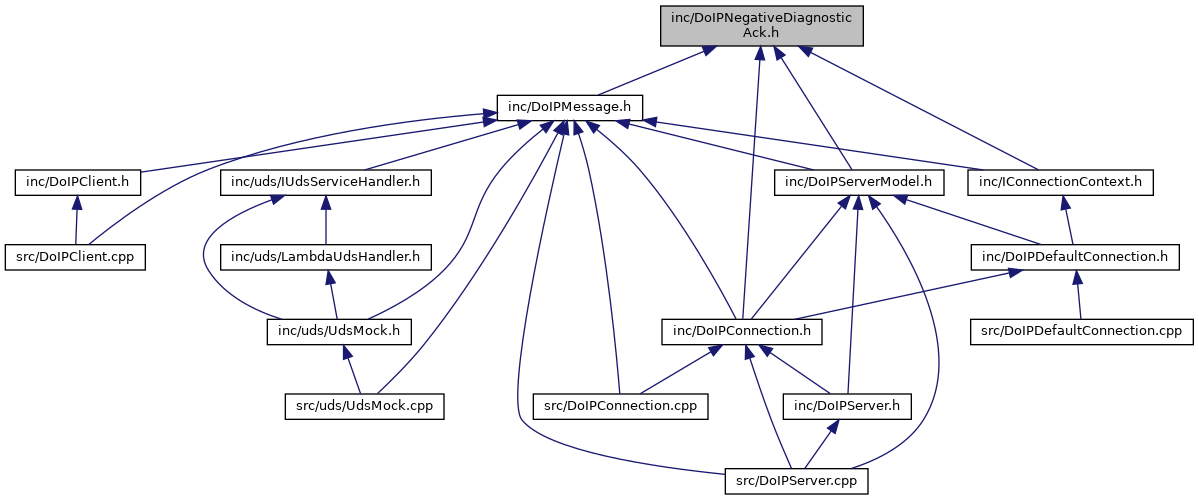

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
	doip

Typedefs
using	doip::DoIPDiagnosticAck = std::optional< DoIPNegativeDiagnosticAck >
	Alias for diagnostic acknowledgment type. More...

Enumerations
enum class	doip::DoIPNegativeDiagnosticAck : uint8_t {   doip::InvalidSourceAddress = 2 ,   doip::UnknownTargetAddress = 3 ,   doip::DiagnosticMessageTooLarge = 4 ,   doip::OutOfMemory = 5 ,   doip::TargetUnreachable = 6 ,   doip::UnknownNetwork = 7 ,   doip::TransportProtocolError = 8 ,   doip::TargetBusy = 9 }

Functions
std::ostream &	doip::operator<< (std::ostream &os, doip::DoIPNegativeDiagnosticAck nack)
	Stream output operator for DoIPNegativeDiagnosticAck. More...
std::ostream &	doip::operator<< (std::ostream &os, doip::DoIPDiagnosticAck ack)
	Stream output operator for DoIPNegativeDiagnosticAck. More...
